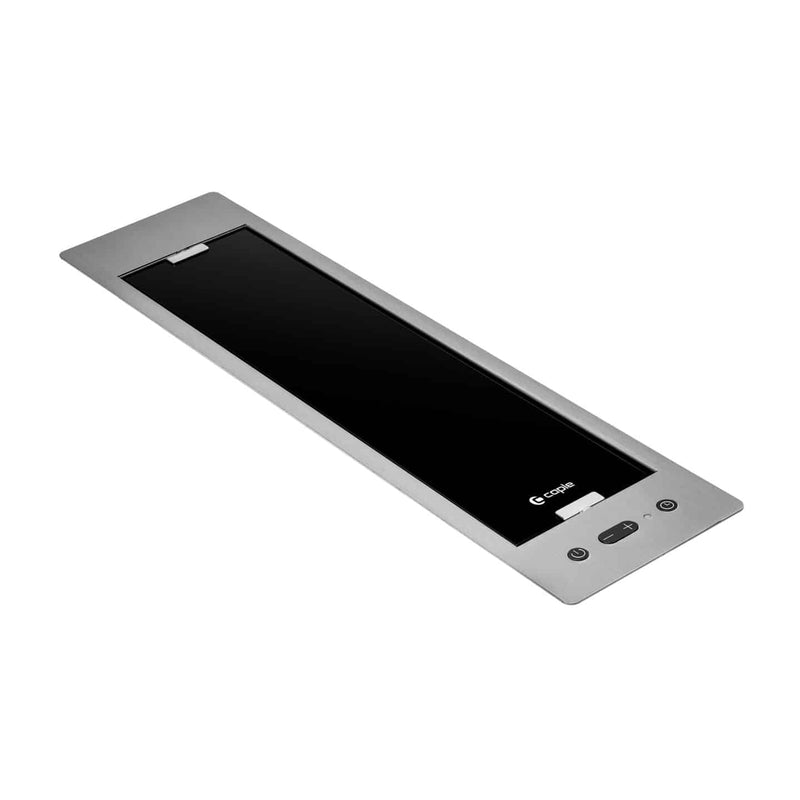

Caple PLASDD522BK Plasma 52cm Modular Flip Downdraft Extractor - Black Glass and Stainless Steel

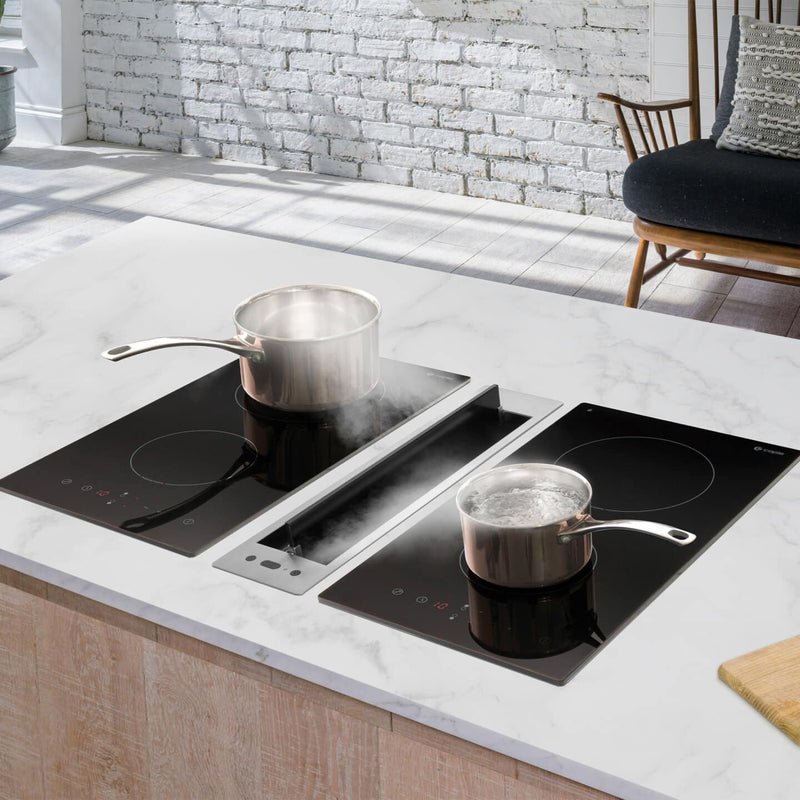

The Caple PLASDD522BK is a 52cm modular flip downdraft extractor with black glass and stainless-steel detailing, designed to sit between compatible modular hobs. The extractor rises when required and helps keep the worktop visually clear when not in use.

Illuminated touch controls provide access to four speeds and an automatic timer that switches the unit off after 10 minutes. Aluminium grease filters capture cooking grease, while perimetrical extraction draws air from both sides to support installation between modular hobs. The supplied Plasma filter with ESD is designed for recirculation and helps reduce cooking odours and airborne particles. Caple states a maximum extraction figure of 1000m³/h for the Plasma filter system; this is a filter-system specification, not a confirmed hood extraction rate.

• Product type: Plasma modular flip downdraft extractor
• Model: PLASDD522BK
• Finish: Black glass with stainless-steel detailing
• Width: 520mm (52cm)
• Controls: Illuminated touch controls
• Speeds: 4
• Timer: Automatic switch-off after 10 minutes
• Filters: Aluminium grease filters and Plasma filter with ESD
• Plasma filter: For recirculation; 150mm inlet; stated maximum filter-system extraction 1000m³/h; 6W power consumption
• Ducting: 150mm required ducting size
• Motor: Required and sold separately
• Compatibility: For use with gas or electric hobs; designed to extract from both sides between modular hobs
• Installation clearance: At least 650mm from the hob electrics box
• Warranty: 2 years, with a possible 5-year filter warranty after registration as specified by Caple

Check Caple's official installation diagram and extraction guide before ordering. The extractor motor is sold separately, and a compatible recirculation kit may be required depending on the planned installation.
